Brand: Philflex
PHILFLEX – 2C Royal Cord Type ST (600 volts, 60°C/75°C)
2C Royal Cord Type ST (600 volts, 60°C/75°C) Application Used for light, medium, and heavy duty power supply to appliances, office equipment in the Philippine Electric Code. Other applications include wiring for washing machines and various other large appliances, heavy duty tools, motors, and temporary electrical power and lighting installation for construction site. The conductor…

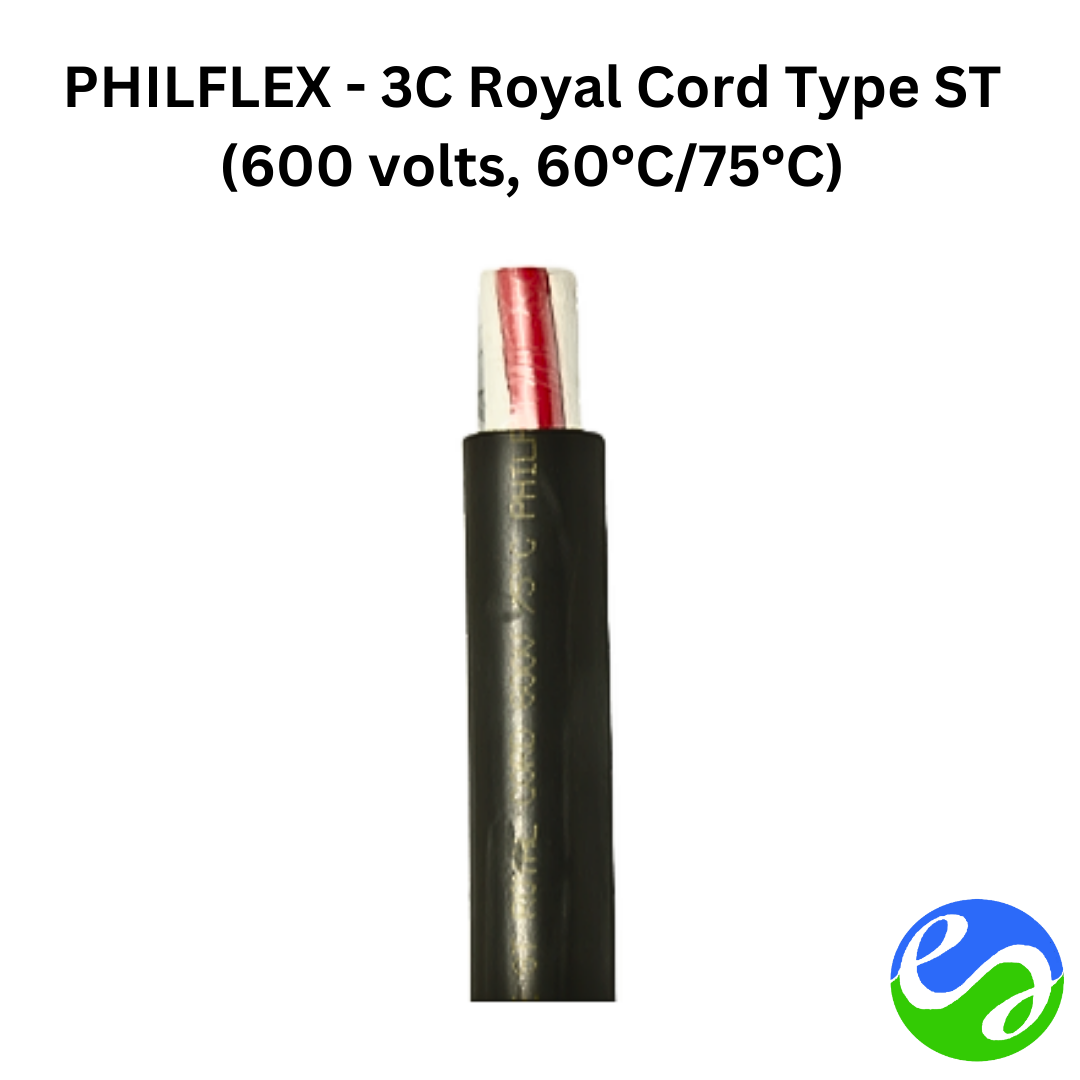

PHILFLEX – 3C Royal Cord Type ST (600 volts, 60°C/75°C)
3C Royal Cord Type ST (600 volts, 60°C/75°C) Application Used for light, medium, and heavy duty power supply to appliances, office equipment in the Philippine Electric Code. Other applications include wiring for washing machines and various other large appliances, heavy duty tools, motors, and temporary electrical power and lighting installation for construction site. The…
PHILFLEX – 4C Royal Cord Type ST (600 volts, 60°C/75°C)
4C Royal Cord Type ST (600 volts, 60°C/75°C) Application Used for light, medium, and heavy duty power supply to appliances, office equipment in the Philippine Electric Code. Other applications include wiring for washing machines and various other large appliances, heavy duty tools, motors, and temporary electrical power and lighting installation for construction site. The…
PHILFLEX – Battery Cable
Battery Cable Specification PNS 260, SAE-J1127 Application Use for automotive application such as Cars, trucks, tractors, and off-road vehicles where heat, oil, and acid resistance are required. Construction/Special Features Soft drawn bunch copper wire (ROPELAY) Thermoplastic PVC Lead Free 105C Insulated Good abrasion and cut resistance Flame retardant, Oil, Acid, and Moisture resistance…
PHILFLEX – Control Cable 600 volts
Control Cable 600 volts Specification PNS 1207ICEA S-73-532 Application Use for operation and interconnection of protective devices and for general use maximum circuit voltage rating 600 volts. Construction/Special Features Soft Drawn Stranded Concentric Conductors Thermoplastic PVC Lead Free 75C Insulated Tapping with Mylar tape thickness 0.027 mm applied helically with minimum overlap of…

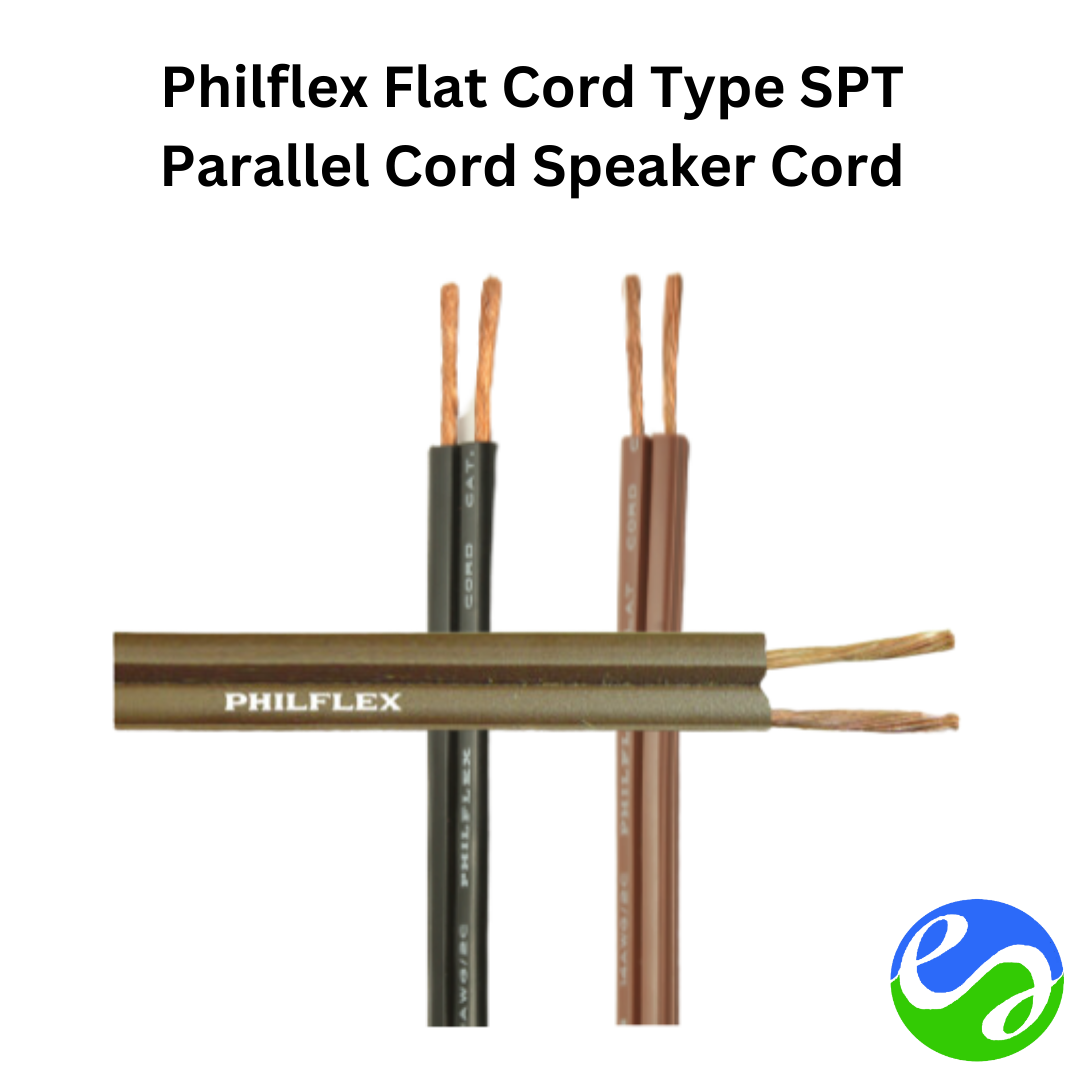

PHILFLEX – Flat Cord Type ST
Parallel Cord. Speaker Cord (300 Volts, 60°C) Specifications PHILFLEX Type FLAT CORD meets and exceeds applicable UL62 standard, PNS 163 standard. Applications PHILFLEX Type FLAT CORD conductors are primarily used in small appliances for indoor services rated at 300 Volts AC or below. Use on circuits not exceed 600 volts phase to phase at…
PHILFLEX – Intercom Cable
Intercom Cable Application PHILFLEX Intercom Cable is used for inside wiring applications, connector cables and other multi-line installation. Construction PHILFLEX Intercom Cable copper conductors are annealed (soft) copper. The conductors is uniformly insulated with a semi rigid polyvinyl chloride compound. The insulated conductors are twisted pairs which are stranded together to form the core…
PHILFLEX – RG11 Standard with Messenger Cable
RG11 Standard with Messenger Physical Dimensions Center Conductor: 1.63+ 0.01mm Copper Clad Steel Dielectric: 7.11 + 0.05mm Foam PE Shield: Bonded AL Foil 100% Braid Coverage: 60% x 16 x 5+ 0.005mm AL Wire Jelly: Yes Jacket 10.16 ± 0.05 mm PVC Messenger: 2.66 + 0.01mm Galvanized Steel Jacket: 4.30 + 0.05mm PE Mechanical Characteristics…
PHILFLEX – RG59 Coaxial Cable
RG59 Coaxial Cable Description 20 gauge (0.81mm) copper covered steel center conductor; gas expanded polyethylene dielectric; inner shield aluminum foil overlap bonded to dielectric; outer shield of bare aluminum braid wire ; jacket of PVC Physical Dimensions Center Conductor: 0.81 + 0.01mm Copper Clad Steel Dielectric: 3.66 + 0.05mm Foam PE Shield: Bonded AL Foil…
PHILFLEX – RG6 CCTV Siamese Cable
RG6 CCTV Siamese Physical Dimensions Center Conductor: 1.02+0.01mm Copper Clad Steel Dielectric: 4.57+0.05mm Foam PE FOAM PE Shield: Bonded AL Foil 100% Braid Coverage: 60%X16X4X0.16+0.005mm AL Wire Jacket: 6.91 + 0.05mm PVC Mechanical Characteristics Operating Temperature Range: 20C to +75C Max. Recommended Pulling Tension: 45 lbs Min. Ben Radius (Install): 3 in. Electrical Characteristics Impedance:…
PHILFLEX – RG6 Coaxial Cable
RG6 Coaxial Cable Description 18 gauge (1.02mm) copper clas steel center conductor; gas expanded polythene dielectric; inner shield aluminum foil overlap bonded to dielectric; outer shield of bare aluminum braid wire; jacket of PVC Physical Dimensions Center Conductor: 1.02 ± 0.01mm Copper Clad Steel Dielectric: 4.57 ± 0.05mm Foam PE Shield: Bonded AL Foil 100%…
PHILFLEX – RG6 Tri-Shield with Messenger Cable
PHILFLEX – RG6 Tri-Shield with Messenger Cable Physical Dimensions Center Conductor: 1.02 Copper Clad Steel Dielectric: 4.57 + 0.05mm Foam PE Shield: Bonded AL Foil 100% Braid Coverage: 60% x 16 x 0.16 ± 0.005mm AL Wire Shield: AL Foil 100% Jacket 7.06 ± 0.05 mm PVC Ground Wire: 1.30 Galvanized Steel Ground Jacket: 3.0…
PHILFLEX – Telephone Jacketed Wire
Application For interconnecting of Internal telephone switchiing Specification Commercial Specs Construction/Special Features Soft Drawn Copper Wire Thermoplastic PVC Lead Free 75C Insulated Jacketed with Thermoplastic PVC Lead Free 60C Flame Retardant and Moisture Resistant Color Insulation 2C – Black & Red 3C – Black, Red, & White 4C – Black, Red, White & Green …
PHILFLEX – TF Wire 60°C, 600V
Thermoplastic insulated. Oil & Moisture Resistant, Flame Retardant. Specifications PHILFLEX Type TF Wire meets and exceed applicable UL62 and PNS 163 specifications. Applications PHILFLEX Type TF WIRE conductors are primarily used in installation on lighting fixtures and low power, low voltage remote control circuits where maximum conductor temperature does not exceed 60C, 600 volts.…
PHILFLEX – UTP CAT 5E 4 PAIRS
UTP CAT 5E 4 PAIRS Physical Dimensions Center Conductor: 0.50±0.01mm BC Insulation: 0.89±0.02mm PE Pair Count: 4 Jacket: 5.08 ± 0.05 mm PVC Ripcord: YES Mechanical Characteristics Operating Temperature Range: 20C to +75C Installation Temperature Range: 0C to + 60 C Max. Recommended Pulling Tension: 25 lbs Min. Bend Radius (Install): 0.8 inches Electrical Characteristics…
PHILFLEX – UTP CAT 6 4 Pairs 550 MHz
UTP CAT 6 4 Pairs 550 MHz Physical Dimensions Center Conductor: 0.565±0.01mm Insulation: 1.05±0.02mm Pair Count: 4 Seperator: YES Jacket: 6.40 ± 0.05 mm PVC Ripcord: YES Mechanical Characteristics Operating Temperature Range: 20C to +75C Installation Temperature Range: 0C to + 60 C Max. Recommended Pulling Tension: 45 lbs Min. Bend Radius (Install): 0.25 inches…
